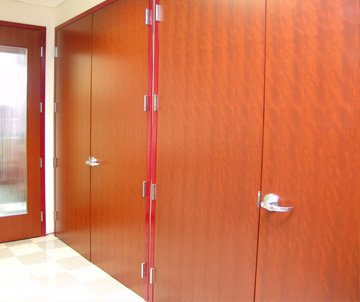

FLUSH DOOR IS:2202
MAESTRO flush doors are modern, elegant and ready to use that can be easily installed with minimum efforts to protect and beautify your dream home. Maestro flush doors are made them exceptionally durable and dimensionally stable with wxcellent tooling and finisheing properties. Obviously the doors are made with chemically treated seasoned hardwood battens and frames.
The cross bands veneers are uniformly dried to the requiste moisture content. They are then bonded with special quality Phenol formaldehyde synthetic resin as per the guideline of IS: 2202.
Sizes & thickness:
Standard sizes available.You can choose from the door thickness of 25,30,32 & 35mm.
Technical Specifications
Sr.No. |
TEST |
ISI REQUIREMENT |
Observed Value |
1. |
Dimension |
Length, Width -+ 5mm Thickness -+ 1mm |
Within Limits |
2. |
Squareness |
Deviation not more than 1 min on a length of 500mm |
Deviation below 1mm |
3. |
Geneal Flatness |
Twist, Cupping, wraping not to exceed 6mm |
|
4. |
Local Planeness |
Depth of deviation at any point to be less than 0.5mm |
Within Limits |
5. |
Impact Indentation Test |
Depth of Indentation not to exceed 0.2mm |
Within limits |
6. |
Edge Loading Test |
Deflection of edge with Max. To be less than 5mm |
Within Limits |
7. |
Shock Resistance Test |
No Visible defect after test |
No Visible Defects |
8. |
Buckling Test |
Initial Deflection-<50mm Residual Deflection -< 5mm |
Within Limits |
9. |
Slamming Test |
No Visible damage after Test |
No Visible Defects |
10. |
Misuse Test |
No Deformation after Test |
No deformation |
11. |
Varying Humidity Test |
No visible warping , twisting or de-lamination |
No such defects |
12. |
End Immersion Test |
No de-lamination at the end |
Observed |
13. |
Knife Test |
Minimum Pass standard |
No de-lamination |
14. |
Glue Adhesion Test |
No de-lamination |
Excellent |
15. |
Screw With draw Test |
Load to withdraw screw to be more than 1000 N |
No de-lamination |
