FILM FACED SHUTTERING PLY IS:4990

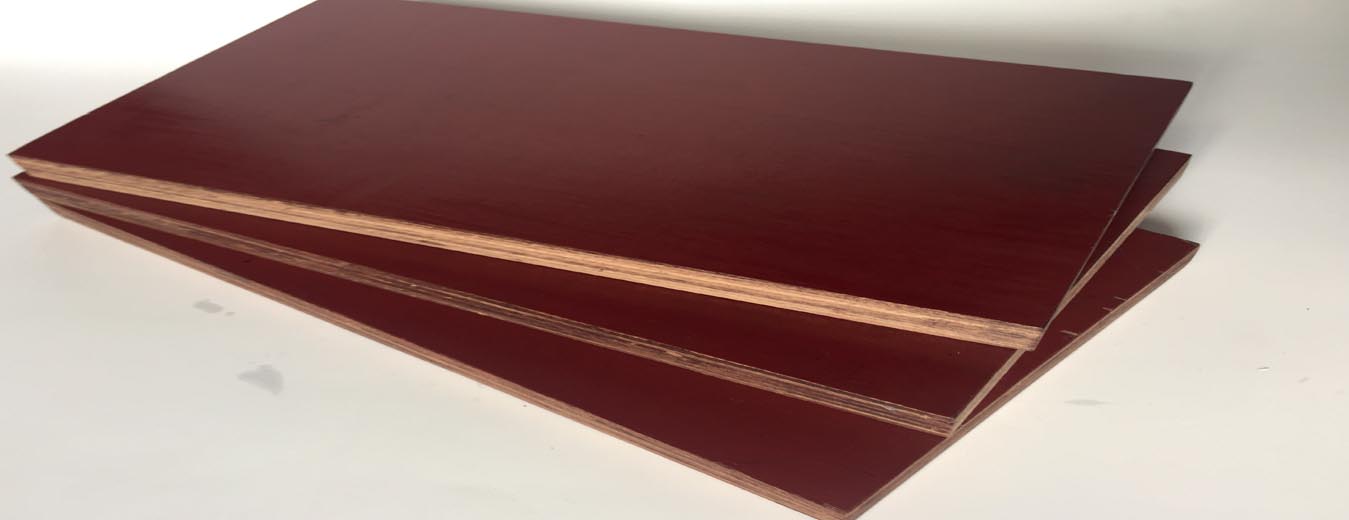

MAESTRO film faced densified shuttering plywood is a product for high and great construction uses. The Phenolic flim plywood has a coated, glossy surface, which gives the product long life and great value in terms of re-use. This plywood with stands the corrosive action of cement, water and sunlight.

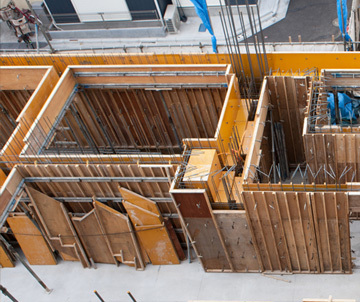

MAESTRO film faced densified is an innovative concept and is ideal for exposed concrete shuttering and frameworks. These board are made of best selected plywood veneers bonded with phenol formaldehyde resin. An external coating of phenol polymer film made in house with imported craft paper gives a super smooth, uniform surface finish.

MAESTRO film faced densified has become the foremost choice of leading quality conscious architects and civil construction engineers. All standard sizes and thickness available. It givens more number of repetitions. Provides smooth surface to concrete from work. It is economical in ration to its number of uses.

Technical Specifications

Sr.No.

TEST

ISI REQUIREMENT

Observed Value

1.

Moisture Content

5% - 15%

8%

2.

Glue Sheer Strength (Dry State)

Min. Ind. 1100 N
Min. Avg 1350 N

1350 N
1520 N

3.

Glue Sheer Strength (after 72hrs. Boiling)
Adhesion to piles

Min. Ind. 800 N
Min. Avg 1000 N
Min. Pass Standard

1150 N
1250 N
Excellent

4.

Mycological Test
Glue Sheer Strength

No Sign of Separation
Min. Ind. 800 N
Min. Avg 1000 N

No separation
1060 N
1250 N

5.

Tensile Strength
Along the grain –
Across the grain-
Sum of the Tensile Strength



32.5 N / Sq.mm
22.5 N / Sq.mm
60.0 N / Sq.mm



46.5 N/ Sq.mm
32.2 N/ Sq.mm
84.7 N/ Sq.mm

6.

Static Bending Strength
Modulus of Elasticity
Along the grain –
Across the grain-



8000 N / Sq.mm
4000 N / Sq.mm



9100 N / Sq.mm
4320 N / Sq.mm
